Case Study 6

Diving Board Hydraulic Lifter System.

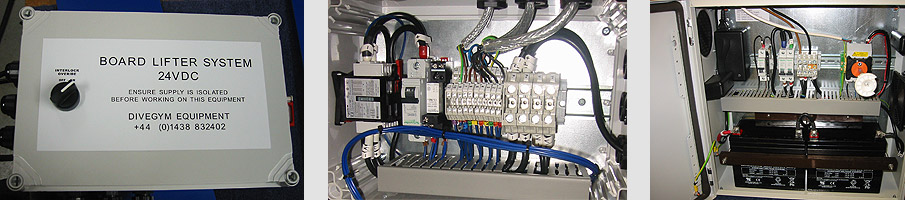

A simple control panel to operate a lifter for a diving board to allow use of a movable floor in the diving pool by moving the boards out of the way by piovoting them up. Including interlocks between the floor controls and a mag lock to protect door access to the high diving boards when the floor is in the "shallow" position.

Developed hand in hand with the customer, we designed a simple relay logic 24vdc system for pool side use with local battery and remote battery fed options.
